Description

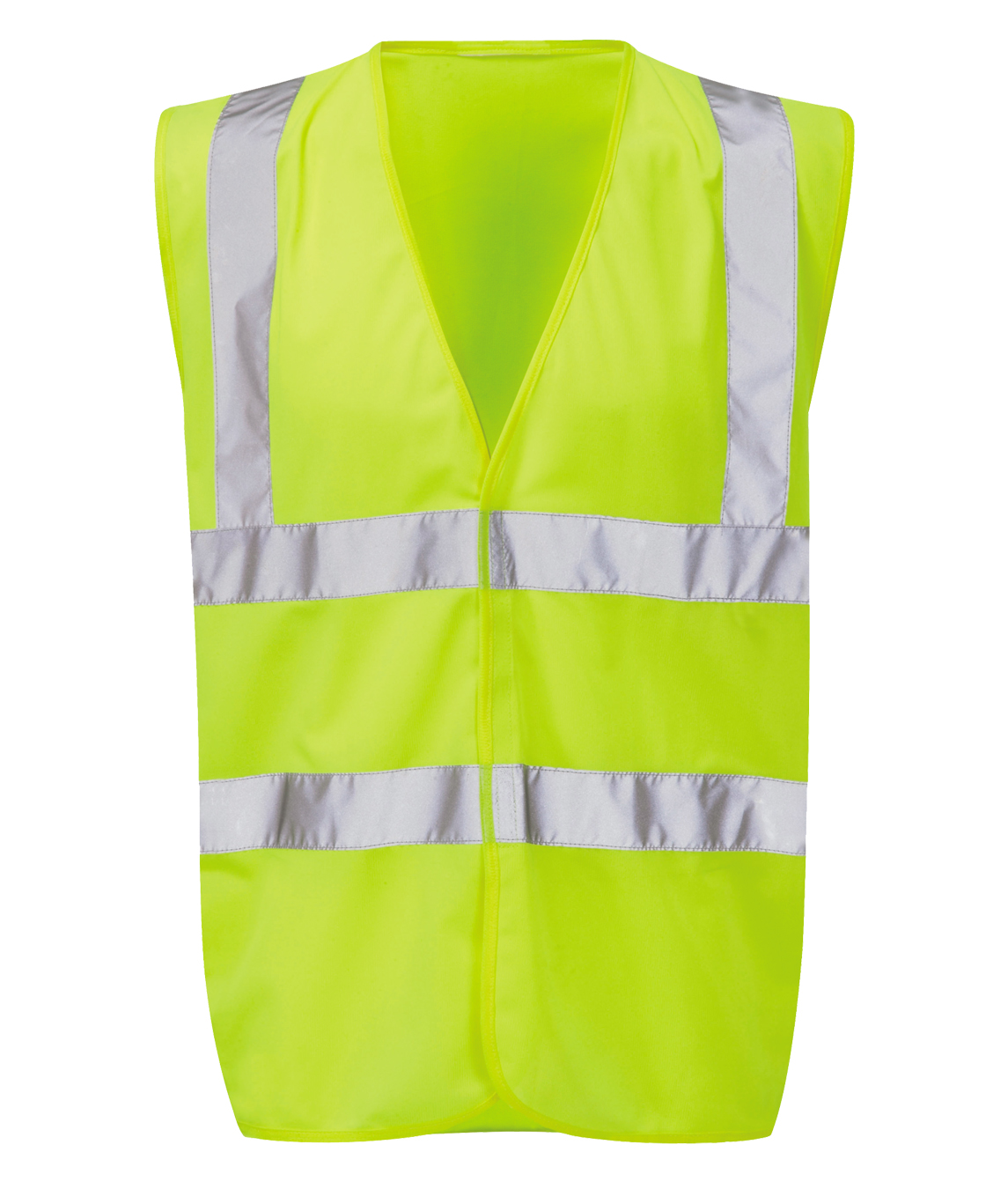

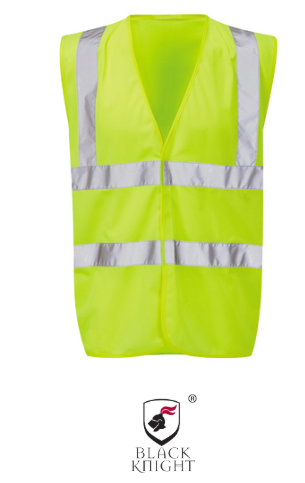

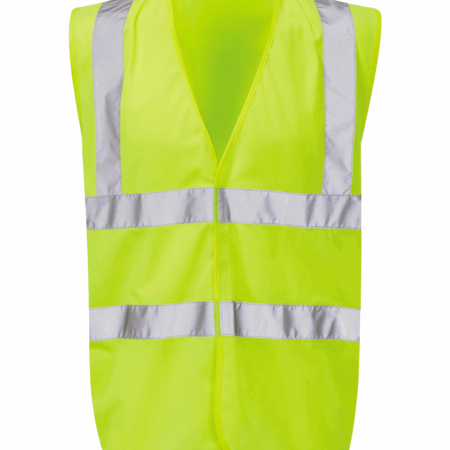

Hi-vis waistcoat with front velcro fastening. Self coloured binding Sewn on reflective tape.
100% Polyester Tricot 120g.
Size: S-5XL
• EN ISO 20471: 2013+A1:2016
Area Of Visible Material Class 2
Standards
EN ISO 20471: 2013 High Visibility Clothing Standards
The standard specifies the requirements for high visibility clothing “which is capable of giving a visual signal to the user’s presence”. This now updated standard (from EN471) new has broadened the usage base and a distinction between different types of risk situations has been made. The defined risk situations will be the basis for which norm is applicable for the user. ISO EN 20471 is applicable to high-risk situations. Surface area of fluorescent and retro-reflective material determines the level and performance there are 3 levels.
| Minimum area with visibility material m2 | |||
|---|---|---|---|
| Class 1 | Class 2 | Class 3 | |
| Background material | 0.14 | 0.50 | 0.80 |
| Reflective material | 0.10 | 0.13 | 0.20 |
| X – The number next to the graphical symbol indicates the garment class in accordance to Table 1. (max. class 3) | |||
Intermediate Level required for any persons working on or near A and B class roads, also for delivery drivers. Must incorporate a minimum of 0.50m2 of background material and 0.13m2 of retroreflective material. (2.60 metres of 5cm wide reflective tape)
Garment Combinations
The standard also permits this performance class to be met by specifying a single garment or a combination of garments – for instance, a class 2 jacket and a class 2 pair of trousers might be combined and certified as a class 3 combination. Where a combination is specified, this will be deemed to meet the requirements of the standard only when the supplier provides clear instructions on how the classification has been achieved. A class 3 garment is required to cover the torso and have sleeves with reflective bands or/and trouser legs with reflective bands. The area of background or retroreflective material that is covered by badges logos, lettering etc. shall be excluded from the calculation of the required minimum area (unless these additions meet the requirements).
